Primal Performance Series Dual Arm Functional Trainer
Primal Performance Series Dual Arm Functional Trainer
Technical Specifications
Gross weight (kg) | 380 |
Net weight (kg) | 350 |
Packing size (cm) | 202 x 150 x 67 (L x W x H) |
Product size (cm) | 184-338 x 108-160 x 187-241 (Depth x Width x Height) |
Warranty | Full commercial use - 5 years frames, 3 years parts, 1 year on pads, cables, pulleys/wearables. 1 year labour. |

Primal Performance Series Dual Arm Functional Trainer
Primal Performance Series Dual Arm Functional Trainer
In stock
Request A Quote
Couldn't load pickup availability

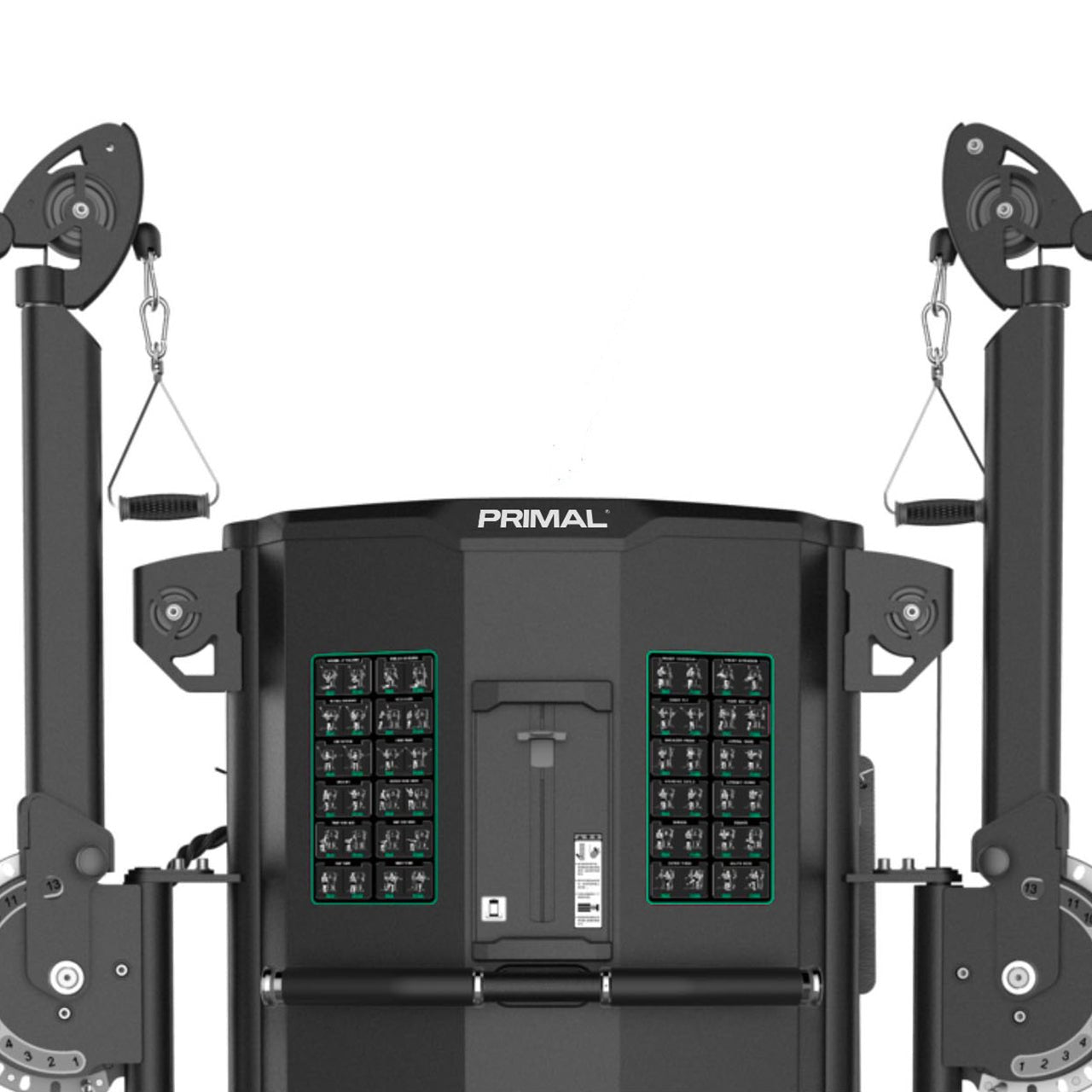

- The Primal Performance Series Dual Arm Functional Trainer offers an almost unlimited range of exercises thanks to the freedom of movement provided by the rotating pulleys and the movable arms which adjust independently.
- Develop stability and coordination as well as strength.

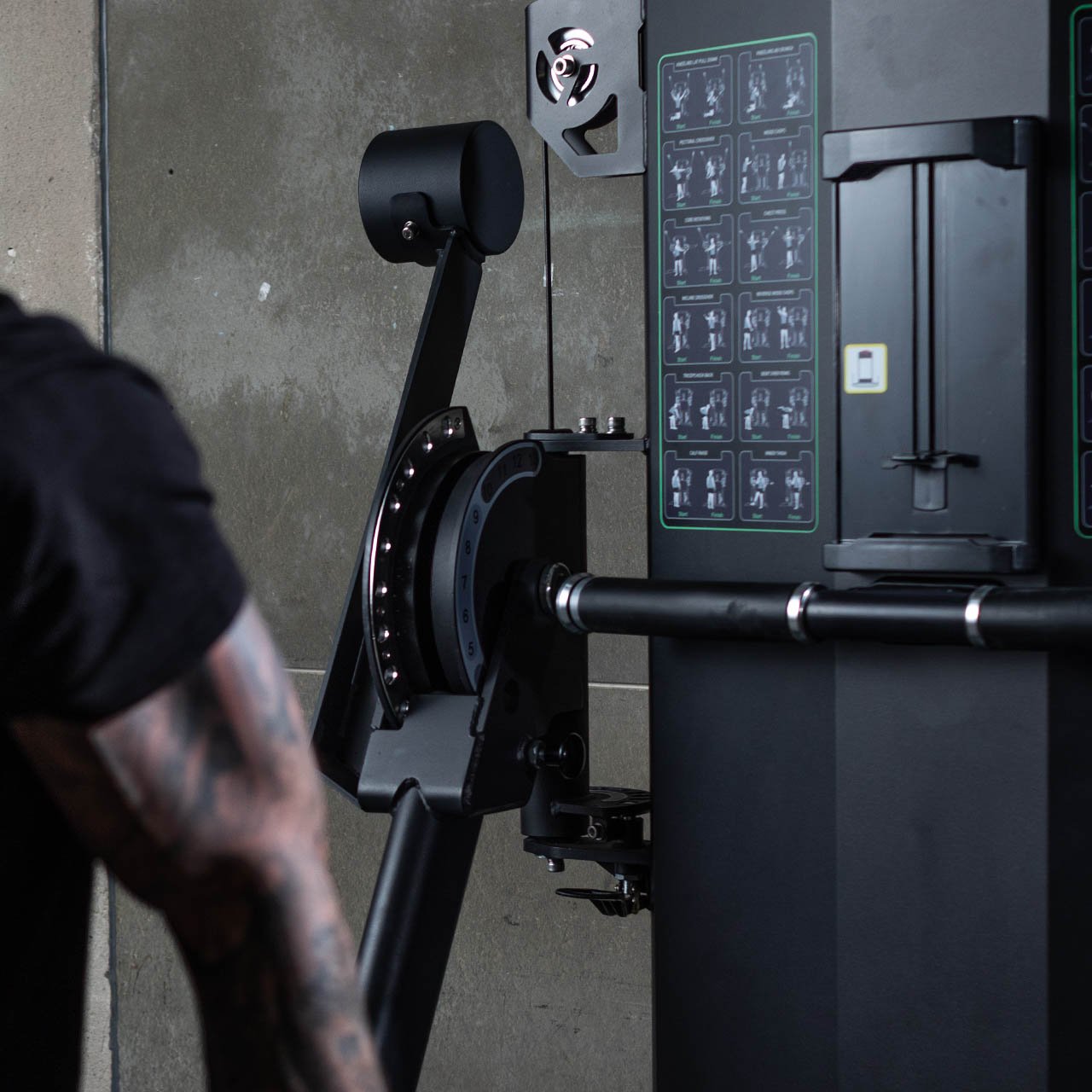

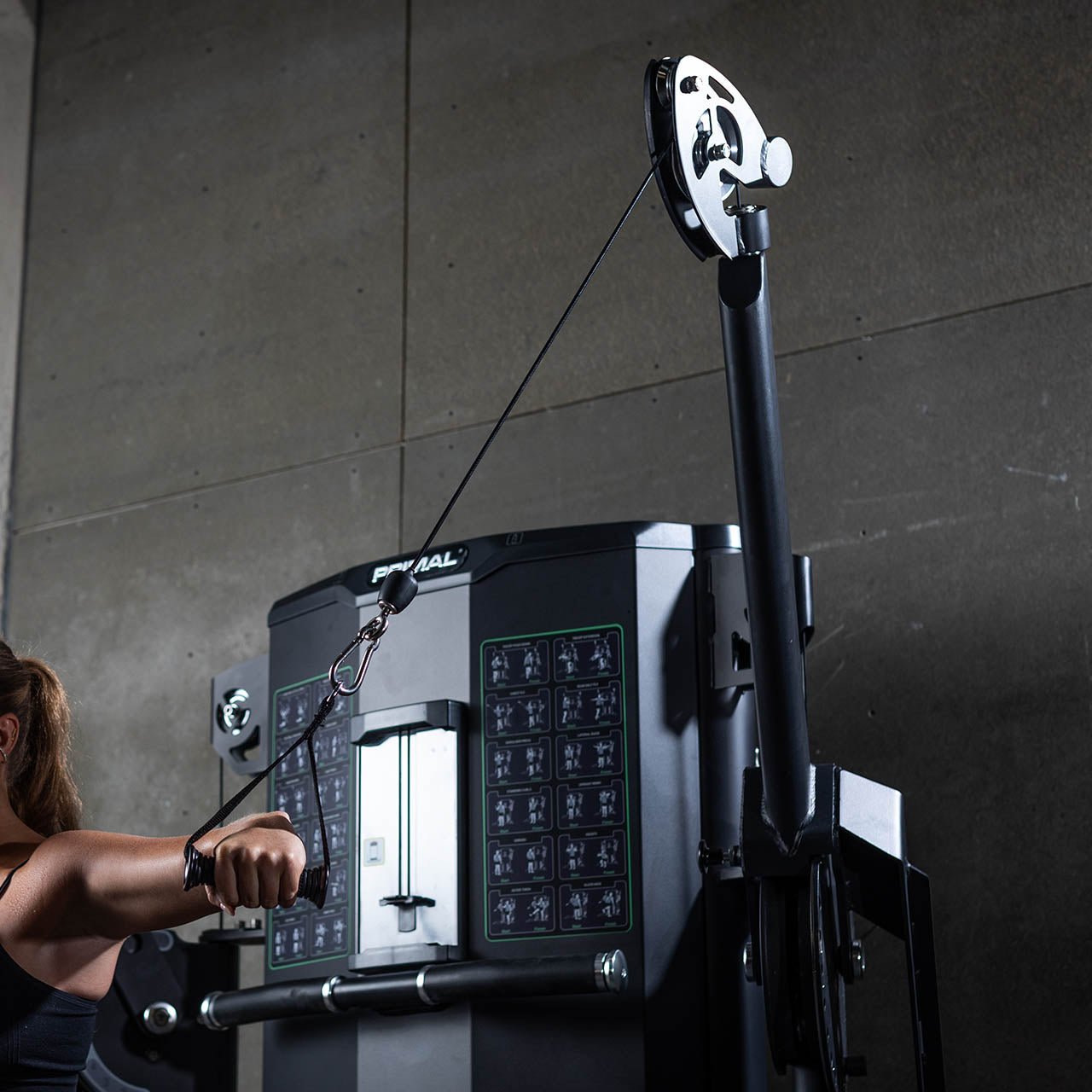

- Aluminum pulleys with bearings ensure fluid movement on an almost unlimited range of exercises.
- Each arm rotates vertically and horizontally through 12 adjustments that allow the execution of any type of movement. The arms are counter-balanced to facilitate ease of placement.
- The 234cm of cable in each of the arms allow a complete range of extension and flexion exercises.
- The weight stack shrouds ensure the safety of the user. Dual weight stacks allow two users to train simultaneously.
- The Dual Arm Functional Trainer is built with 11 and 7 gauge steel and finished with an electrostatic process with powder coating.
- 2 x 82kg Weight Stacks (going up in 4.5kg increments)
- Accessories included: 2 x revolving cable handles, 1 x tricep rope with forged steel swivel, 1 x ankle strap
- Fixed ballet bar
- Exercise guide
- Adjustable device holder
Make 3 payments of £1,499.99. No fees
Description
Description
Product parameters: ·Pipe specifications: the main frame tubing is made of 2.5mm thick, Φ95 round steel pipe and PT50 * 100 oval steel pipe
Self-lubricating steel cables with a diameter of 4.8MM to ensure smooth operation and prevent corrosion
Pulley: Unique movable pulley design, which can triple the movement stroke, with a total stroke of 3240mm. Aluminum alloy pulleys are used to improve equipment durability and smooth movement
Heavy sheet (25.4mm high-quality steel) and strong magnetic self-priming counterweight pin
Training guide: Clear and easy-to-understand exercise diagrams and muscle diagrams are provided in eye-catching positions to help users use the equipment correctly
Protection cover: adopted The all-inclusive metal shield makes the movement safer
Adjustable device holder for phone or tablet
Adjustment method: the movable arm can be adjusted up and down to 13 levels, left and right to 6 levels
Movement trajectory: individual stacks allow two users at the same time
Footprint area : 1840*1080*1870mm, floor area (MAX): 3380*1600*2410mm
Equipment weight: 350KG
2 x 82kg Weight Stacks (going up in 4.5kg increments)
Accessories included: 2 x revolving cable handles, 1 x tricep rope with forged steel swivel, 1 x ankle strap
Ballet Bar
